DWC-XSDA05Bi

MEGApix Ai 5MP ultra low-profile vandal dome IP camera with fixed lens, IR and an AI engine
Features
  • 5MP sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology.
  • AI Deep Learning object detection.
  • Create up to 40 separate detection zones.
  • Easy setup with no manual analytics calibration.
  • Seamless integration and control with DW Spectrum®.
  • Reduce false alarms with multiple detection zones and logical rules.
  • Increase your recording storage with smart recording and no false alarms.
  • Ultra low-profile vandal dome camera for discrete installation
  • Separate IR LEDs cover for zero IR reflection
  • 2.8mm fixed lens
  • True Wide Dynamic Range (WDR) for clear images in challenging light
  • Simultaneous streaming and multiple codec options for smart bandwidth management
  • 90' Smart IR™ with intelligent camera sync for clear B/W images with no need for external light
  • Smart DNR™ 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
  • Privacy zones cover sensitive areas in the camera's field of view.
  • Two-way audio for direct communication between the monitoring station and the camera's location.
  • Show More

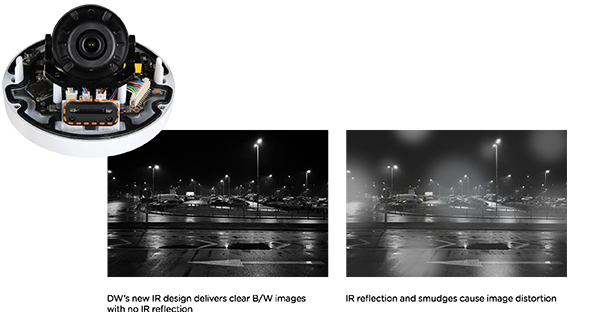

Next Generation IR Technology

DW’s new dome design places the IR LEDs separately from the lens and dome. The result is a clear B/W image in any lighting and weather conditions, with no IR reflection on the dome or IR hotspots.

Ultra Low-Profile Vandal Dome Camera

The DWC-XSDA hardware packs all the power and capabilities of DW’s Ai™ into a small, discrete vandal housing. The camera, small enough to fit in the palm of your hand, is a great addition to any application that is looking for maximum surveillance power in a discrete installation.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our Deep Learning engines perform object detection (DL Object tracker), automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 and CV25 chips with CVflow®

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow® architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Deep Learning

DW’s Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Higher resolution = more pixels, more forensic details

DW's technology delivers high-resolution crystal-clear images, making more minor details appear clear and sharp when zooming into the scene.

Specifications

Active Pixels 2592 (H) x 1944 (V) (x2)
Frequency 50Hz
Image sensor 5MP 1/2.8" CMOS sensor, Star-Light Plus™ sensor
Maximum resolution 5MP
Minimum Scene Illumination in color 0.0 lux (B/W), 0.08 lux (color)
Scanning System Progressive scan
Total Pixels 2608(H) X 1984(V)
Lens
Focal Length 2.8mm
Horizontal Field of View (HFOV) 97.7°
IR Distance 90' range Smart IR™
Lens Type Fixed Lens
Vertical Field of View (VFOV) 73°
I/O
Audio compression G.711 ulaw
Event triggers Illegal login, Network disconnection, Schedule, Sensor detection, Temperature anomaly
I/O Alarm in/out 1 input, 1 output
I/O Audio in/out 1 microphone built-in
Intelligent Video Analytics
IVA+ license Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night, Day (color), Night (B/W)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included)
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation, Email, FTP server, SD card recording
Privacy Zones 16 programmable privacy masks
Sharpness Yes
Shutter Mode Anti-Flicker, Auto, Manual, Slow Shutter
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN RJ45 (10/100Base-T)
Network resolution H.264: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240, H.265: 2592x1944, 2560x1440, 1920x1080, 1280x720, 800x600, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240, MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
Network Web Viewer Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser, Windows® OS
Protocol DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf
Security 802.1x, Digest authentication (ID/PW), HTTPS (TLS), IP filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability Dual-stream at different rates and resolutions
Video Bitrate 100Kbps ~ 25Mbps, multi-rate for preview and recording
Video Compression Type H.264, H.265, MJPEG
Video Management Software Any ONVIF conformant CMS, DW Spectrum® IPVMS
Environmental
Compliance CE  FCC  NDAA Compliance  ONVIF  UL Listing
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) 4.13" x 2.83" (105 x 72mm)
Housing Vandal Dome
Housing Color White
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting, Polycarbonate Dome
Electrical
American wire gauge (AWG) Cable type #18
Power Consumption 12V DC: 10.4W, 866mA, PoE: 12.5W, 260mA
Power Requirements 12V DC, Adapter not included, PoE
General
Operating humidity 10-90% (non-condensing)
Warranty 5 Year Warranty
